The Nissan RB Engines

The Nissan RB engines are ledgenary for their ability to rev freely also for there relability and the ability to make big power.

This page is a guide to show you what engines are avavliable. also some of the stranger variants that people have made using the interchangeablity of the Nissan parts.

"This page is to be used as a guide and not as gospel. If you find incorrect information please let me know. "meggala"\

The Engines

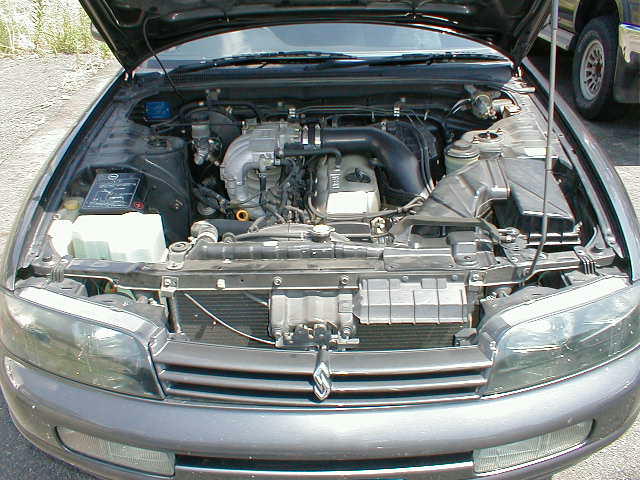

RB20E Bore & Stroke Capacity Power Compression	Single cam 78 X 69.7 1998 130ps @5600 17.5kg's @4000 9.5 to 1
The RB20E is the base model of the nissan RB series Its a single cam 2.0 liter. This engine was used for company cars etc where fuel consumption was required. It features in the r33 r34 series of skylines both 4 door and 2 door and came in manual or automatic.

RB20DE Bore & Stroke Capacity Power Compression	Twin cam 78 X 69.7 1998 165ps @5600 19kg's @4000 10.2 to 1
The RB20DE is the twin cam version of the above it is a great free reving engine. The engine is refined and provides very good power for its capacity. The engine is used in the R32 Skyline GTS models.It is economical and sporty in both auto and manual.

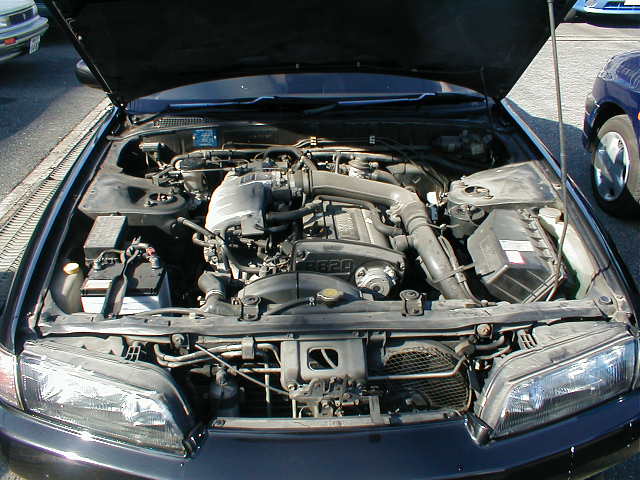

RB20DET Bore & Stroke Capacity Power Compression	Twin cam 78 X 69.7 1998 210ps @5600 25kg's @4000 8.5 to 1
The RB20DET is the performance 2 liter engine with good allround perfromance and reliability. This engine responds well to modificaton and can make 400hp with the stock bottom end. It features in the R32 series of skylines both 4 door and 2 door & 4WDand came in manual or automatic. The automatic like all nissans makes about 5 hp less

RB25DE Bore & Stroke Capacity Power Compression	Twin cam 86 X 71.7 2498 190ps @5600 23.5kg's @4800 10 to 1
The RB25DE is the middlebrother of the nissan RB series Its a Twin cam 2.5 liter. This engine is very torquey and is great if you don't require turbo performance. It features in the R23 R33 R34 series of Skylines both 4 door and 2 door and came in manual or automatic. also is came in the R33 & R34 gts-4 so that the gtr had no competion.

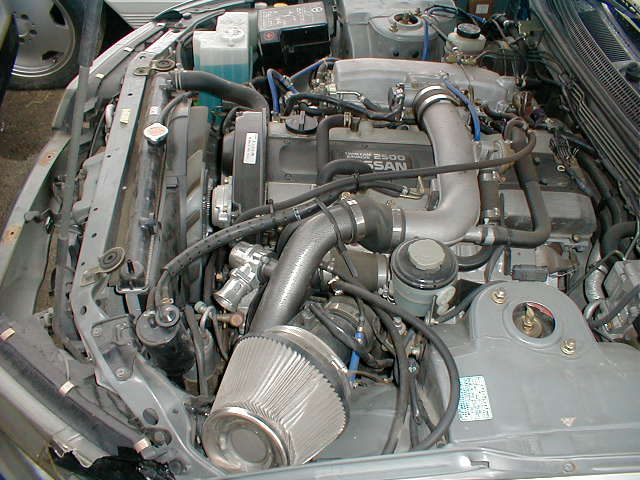

RB25DET Bore & Stroke Capacity Power Compression	Twin cam 86 X 71.7 2498 250ps @5600 30kg's @4800 9 to 1
The RB25DE is the main turbo Nissan RB engine it has a ceramic turbo and high compression for good power. This engine invery torquey and resonds well to modification 450 hp has been achived . It features in the R33 R34 series of skylines both 4 door and 2 door and came in manual or automatic.

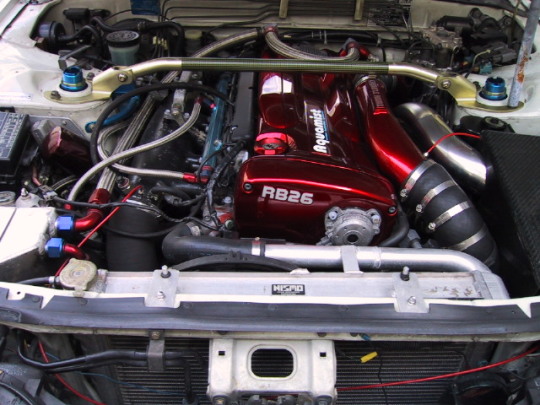

RB26DETT Bore & Stroke Capacity Power Compression	Twin cam 86 X 73.7 2568 280ps @5600 37.5kg's @4000 8.5 to 1
The RB26DETT is the King of the Nissan RB series its a 2.6 liter twin turbo solid camed engine. This engine is race extensively and has produce 1400hp and around 600 hp with stock internals. It features in the R32,R33 ,R34 series of skyline Gtr's. These cars are nicknamed godzilla for their strengh on the race track featuring 4wd twin turbo's they are almost unbeatable on the track.

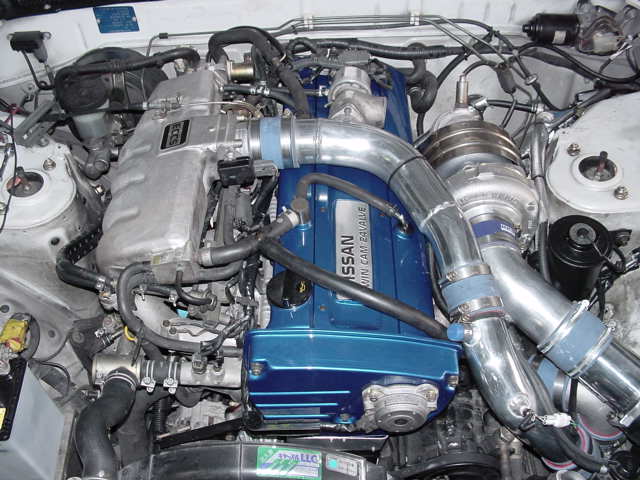

RB30DET Bore & Stroke Capacity Power Compression	Twin cam 86 X 86 3998 400ps + too much... @4000 7.5 to 1
The RB30DET is a hybrid of the Nissan RB series It is custom made by specalist tuners. This engine can produce 6-800 hp at low revs eg 7500 due to its capacity. It features in all types of Skyline there are three variants of it RB 20/30 RB25/30 RB26/30 This engine uses the block of the Australia only engine theRB30 which is Single Cam This mean the cylinder head featured on the engine.The rb25 and 26 both sit without to much problem but the rb20 requires extensive work to both block and head for it to fit.

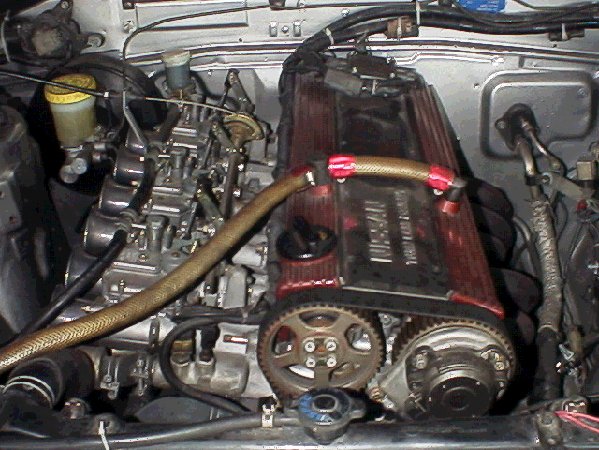

RB30ET Bore & Stroke Capacity Power Compression	Single cam 86 X 86 2998 200ps @5600 27.0kg's @4000 8.5 to 1
The RB30ET is the Turbo model of the Australian Nissan RB series Its a single cam 3.0 liter. This engine makes 400 hp fairly easy and has made 800 hp it has run 9.4 down the 1/4 mile in a Commodore. This engine was used exclusively in the Holden (GM) commodore 1986-1988.It came in manual or automatic. See some of the cars this engine is in (click here)

RB30E Bore & Stroke Capacity Power Compression	Single cam 86 X 86 2998 160ps @5600 17.5kg's @4000 9.5 to 1
The RB30e is the base model of the Australian Nissan RB series Its a single cam 3.0 liter This engine was used for company cars etc where fuel consumption was required. This engine was used in the Holden (GM) commodore 1986-1988.Also the Nissan Skyline R31 Made in Australia. It came in manual or automatic.

RB30DE Bore & Stroke Capacity Power Compression	Twin cam 86 X 86.7 2998 250ps @7000approx 30.5kg's @4000 9.5 to 1
The RB30DE is is an N/A hybrid race engine. This engine is used for racing.and was not in production . how to make an RB30de t. (click here) how to make an RB24de t. (click here) Tomei RB 2.4 parts list (click here)

More Nissan RB engines (click here)

This should get you back (click here)
